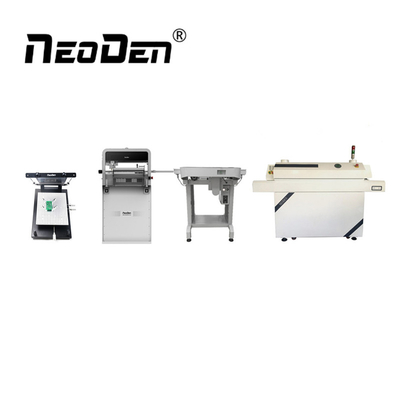

Model | NeoDen4 | ||||||
Machine style | Single gantry with 4 heads | ||||||
Alignment | Stage Vision | ||||||
Placement Rate | Vision on: 4,000CPH Vision off: 5,000CPH | ||||||
Feeder Capacity | Tape feeder: 48 (all 8mm) Vibration feeder: 5 Tray feeder: 5 | ||||||
Component Range | Smallest Size: 0201 Largest Size: 32x32mm (Lead Pitch 0.5mm) Largest Size: 5mm | ||||||
Rotation | ±180° | ||||||
Placement Accuracy | ±0.02mm | ||||||
X-Y Repeatability | ±0.02mm | ||||||
Board Dimension(mm) | Maximum: 310 x 1500mm(Without waffle Tray), 140 x1500mm(With 1 waffle Tray), 350 x 400mm(Without rails) | ||||||
Main Control | GUI | ||||||
Electricity Supply | 110V/220V | ||||||
Power | 180W | ||||||
External Dimensions(mm) | Machine size: 870(L)x680(W)x480(H) Packing size: 940(L)x740(W)x600(H) | ||||||
Weight | Net Weight: 60kgs Gross weight: 80kgs | ||||||
Model | FP2636 | ||||||
Max PCB Size | 280*380mm | ||||||
Min PCB Size | 10*5mm | ||||||
Screen Stencil Size | 260*360mm | ||||||
Printing Speed | Labor control | ||||||
Repeatability | ±0.01mm | ||||||
PCB Thickness | 0~20mm | ||||||
Platform Height | 190mm | ||||||
Positioning Mode | Outside/Reference hole | ||||||
Fine Adjustment Range | Z-axis ±15mm X-axis ±15mm Y-axis ±15mm | ||||||
Positioning Pin Size | 1mm/1.5mm/2.0mm/2.5mm/3mm | ||||||
Packing Size | 710×500×270mm | ||||||
N.W./G.W. | 12KG/14KG | ||||||
Model | T8L | ||||||
Length*Width*Height (mm) | 2100*700*1280 | ||||||
Packing Size(mm) | 2200*800*1280 | ||||||
N.W(KG) | 300 | ||||||
Peak Power(KW) | 12 | ||||||
Working Power(KW) | 5 | ||||||
Input Voltage(V) | 220V/380V | ||||||
Conveyor Width(mm) | 300 | ||||||
Standard Height(mm) | 20 | ||||||
Max Customized Height(mm) | 55 | ||||||
Max Speed of Conveyor (mm) | 1200 | ||||||
8 Heating Zones | First/Fifth:Fast preheat zone Second/Third/Sixth/Seventh:Drying zones Fourth/Eighth:Soldering zone Fifth/Sixth/Seventh/Eighth:Bottom side heat zones (Each zones adapts independent heating/cooling control ways,cooling zone belongs to strong wind refrigerating system.) | ||||||
