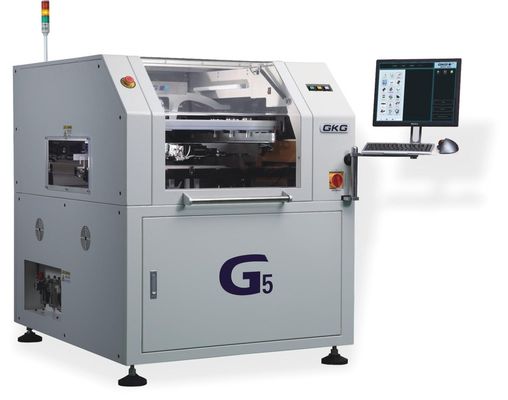

GKG G5 solder paste printing machine Specifications:
|
Mask |
Min size (mm) |
370*370 |
|
Max size (mm) |
737*737 |
|
|
Mask clamping |
Air cylinder |
|
|
PCB |
Min size(L*W mm) |
50*50 |
|
Max size (L*W mm) |
400*340 |
|
|
Thickness |
0.4~6 |
|
|
PCB clamping type |
Top flatten (manual upper edge) / flexible edge clip |
|
|
PCB support |
Magnetic thimble / equal height block / manual adjustment. |
|
|
Conveyor |
Conveyor stage |
One piece guide rail |
|
Transport direction |
Left -right / right -left |
|
|
Squeegee |
Squeegee type |
Squeegee / steel scraper (angle 45 / 55 / 60), user defined |
|
Length |
L=280, user defined |
|
|
Speed |
10~200mm/sec |
|
|
Accuracy |
Repeated accuracy |
±0.01mm |
|
Printing accuracy |
±0.025mm |
|
|
Printing time |
Cycle time (Excluding printing and Cleaning time ) |
<8 sec |
|
Others |
Operation system |
Windows XP /Win7 |
|
Power supply |
AC:220±10%, 50/60HZ,2.5KW |
|
|
Weight |
1000Kg |
|
|
Single size (L*W*H) |
1158*1362*1463 |
|
|
2D inspection |
FOV camera |
8*6mm |
|
Inspection |
Little tin or tin and even missing |
|
|
Inspection size |
0.3mm above |
|
|
Max . teaching windows |
You can display up to 500 pictures at most |
Packing method:
Vacuum package and Strong wooden case for heavy and large equipment;
Shipping way:
By sea, for large package and quantity;
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use a machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
Shenzhen ZENS Electronics Co., Ltd. Aim to be a leading Manufacturer of AOI(Automatic optic inspection)equipment as World Class standards. We also provide technical support after sales and full SMT line equipment for sale and rent, such as soldering printer, pick and place machine, reflow oven, X-ray equipment, and SMT related products. Our company ensures high satisfaction both in products quality and after sales.
our main business range:
1.SMT machine products: ZENS/SAKI AOI; DEK/GKG/ASE printer; YAMAHA/PANASONIC/JUKI/SAMSUNG/FUJI pick&place machine; Heller/ETC reflow oven etc. famous brand SMT Line Equipments high quality and good condition
2. Laser Marking machine manufacturer,Every component is being screened fully at all levels to ensure 100% in quality.
3.PCBA processing,OEM,ODM warm welcome.
Perfect pre-sales services and engineer overseas support excellent technical!
